S.E.G Pneumatic Actuator

Actuator > Pneumatic Actuator

Actuator

Pneumatic Actuator

Pneumatic Actuator
Windbox Actuator

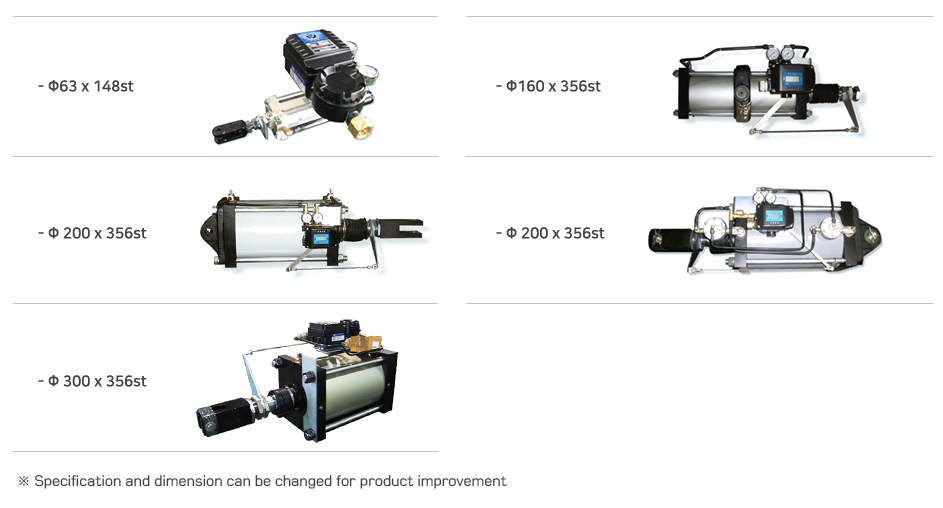

Pneumatic Actuator

Pneumatic Actuator is an equipment for remote position controlling of devices such as Dampers, Fan inliet vanes, Butterfly valve , lever operated valves and other final control elements. The Actuator is totally enclosed structure consist of an air cylinder with well combined linkage , positioner, air control set and electrical position transmitter etc,

- Continuous and sensitive operations

- Easy and flexible installation

- Wide range of options available

- Adjustable output Characteristics

- Various environment application

- Manual operation available

Specification

Standard Description

- Construction : Totally Enclosed outdoor type

- Ambient Temperature : -10 °C ~ 50°C

- Relative Humidity : Below 85%

- Rating : Continuous

- Supply Air Pressure : 1.4 ~ 7.0 kg/cm2G

- Operating Angle : 90 °

- Input Signal

* Current : DC 4-20mA

* Air Pressure : : 0.2 ~1.0 kg/cm2G

- Air Consumption : 25 Nℓ/min (Balancing Position)

- Painted Color : Munsell 7.5 BG 6/1.5

- Type : SE-01H ~ SE-180H

* Torque :10 ~ 1800kgfm

Model Code

Performance Curve

Application

Dimension & Structure

연구센터에 대한 정보 리스트
Model SE - 01H, 02H	Dimension Structure
Model SE - 05H	Dimension Structure
Model SE - 08H	Dimension Structure
Model SE - 15H	Dimension Structure
Model SE - 25H	Dimension Structure
Model SE - 40H	Dimension Structure
Model SE - 60H	Dimension Structure
Model SE - 80H	Dimension Structure
